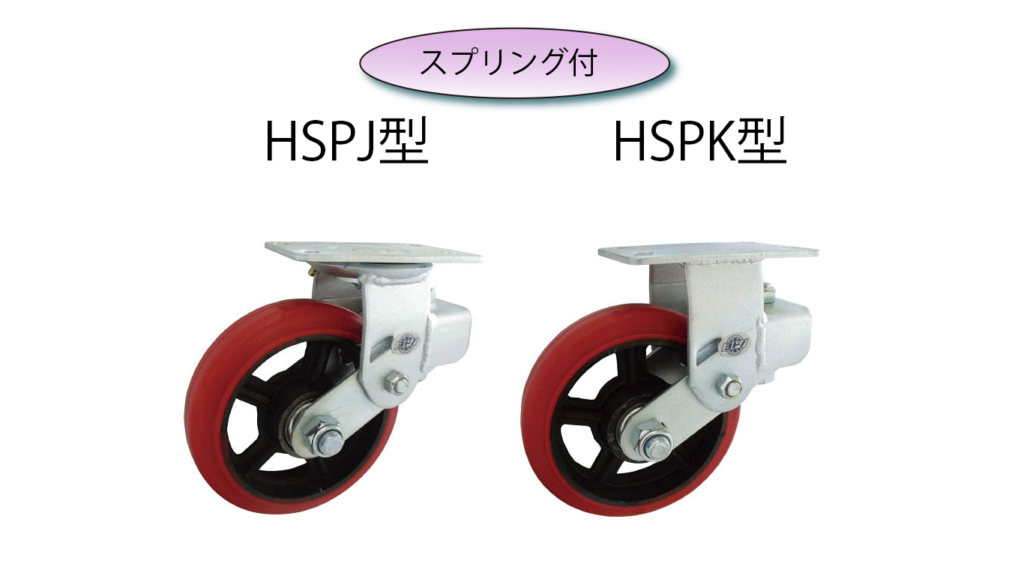

コイルスプリングの特性を生かした緩衝キャスターです。
衝撃吸収、始動抵抗軽減、騒音対策、段差対策など作業環境に活躍できます。
- 旋回部分は鋼球を並べセンターピンで固定することで、強靭な構造となっております。
- 車輪軸径を20mm仕様とすることで、衝撃に対しても強く、定格荷重を高めており、強靭で安全な長寿命キャスターとなっております。
- 200シリーズにつきましては、車輪ストッパー付仕様、旋回ロック付仕様もございます。
ウレタンゴム車輪付自在車(HSPJ型)
★製品画像(HSPJ200)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
備芯 E |
製品重量 (kg) |
HSPJ150 | 赤バネ | 152 | 360 | 300 | 204 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 11 | 55 | 5.4 |
HSPJ200 | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 84 | 7.3 |
ウレタンゴム車輪付自在車ストッパー付(HSPJーST型)
★製品画像(HSPJ200ST)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
備芯 E |
製品重量 (kg) |
HSPJ200-ST | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 84 | 7.9 |
ウレタンゴム車輪付自在車旋回ロック付(HSPJーTL型)
★製品画像(HSPJ200TL)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
備芯 E |
製品重量 (kg) |
HSPJ200-TL | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 84 | 7.5 |
ウレタンゴム車輪付自在車ストッパー・旋回ロック付(HSPJーST・TL型)
★製品画像(HSPJ200ST・TL)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
備芯 E |
製品重量 (kg) |
HSPJ200ST-TL | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 84 | 8.1 |
ウレタンゴム車輪付固定車(HSPK型)
★製品画像(HSPK200)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
製品重量 (kg) |
HSPK150 | 赤バネ | 152 | 360 | 300 | 204 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 11 | 4.8 |
HSPK200 | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 6.7 |
ウレタンゴム車輪付固定車ストッパー付(HSPKーST型)
★製品画像(HSPK200ST)


★寸法図


単位:mm
品名 | バネ | 車輪外径 D |
許容荷重 (kg) |
スプリング 有効荷重(kg) |
車輪取付高さ H |
タイヤ巾 W |
取付座 AxB |
取り付け穴ピッチ P1xP2 |
ベース厚 t |
取付穴径 Q |
製品重量 (kg) |
HSPK200ST | 緑バネ | 203 | 630 | 400 | 246 | 50 | 159×114 | 133×86~ 125×62 |
6.0 | 13 | 6.9 |
